MEPER Full Automatic 2 Cavity Wholesale Customized Stable Automatic Pet Salad edible Oil Bottle Blowing Servo-controlled Blow Molding Machine
Pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has various cavities and the maximum capacity of the products is 20L. It can blow bottles in shapes: carbonated, mineral, pesticide,cosmetics, wide-mouth, hot filling, and other packing containers etc. which is made of plastic of crystalline type, such as PET and PP etc.
Features:
- inside heating system in the oven.
| Productivity | Depend on bottle design | 1800-2200PCS/H | 3500-4200PCS/H | 5500-6300PCS/H | 8000-9200PCS/H |
| Product type | Volume | 0.1-2.0L | 0.1-2.0L | 0.1-2.0L | 0.1-2.0L |
| Body diameter | ≤100mm | ≤100mm | ≤100mm | ≤100mm | |
| Height | ≤310mm | ≤310mm | ≤330mm | ≤330mm | |
| Neck diameter | ≤38mm | ≤38mm | ≤38mm | ≤38mm | |
| Mold | Cavity | 2 | 4 | 6 | 6 |
| Mold thickness | 240mm | 240mm | 240mm | 240mm | |
| Mold volume | 260*240*370mm | 510*240*360mm | 640*240*360mm | 640*240*360mm | |
| Main machine power | Electrical source power | 380V/220V 50/60HZ | 380V/220V 50/60HZ | 380V/220V 50/60HZ | 380V/220V 560/60HZ |
| 3Phase | 3Phase | 3Phase | 3Phase | ||
| Rated power | 25kw | 49kw | 73kw | 97kw | |
| Really use power | 6.5kw | 13kw | 25kw | 38kw | |
| Air system | HP air compressor | 1.6m³/min3.0Mpa | 3.0m³/min3.0Mpa | 6.0m³/min3.0Mpa | .80m³/min3.0Mpa |
| LP air compressor | 1.0m³/min1.0Mpa | 1.6m³/min1.0Mpa | 2.0m³/min1.0Mpa | 3.0m³/min1.0Mpa | |
| Air tank | 0.6m³3.0Mpa | 0.6m³3.0Mpa | 1.0m³3.0Mpa | 1.6m³3.0Mpa | |
| Air dryer | 1.0m³/min3.0Mpa | 2.0m³/min3.0Mpa | 6.0m³/min3.0Mpa | 6.0m³/min3.0Mpa | |
| Cooling water | Water Chiller | 3HP | 3HP | 5HP | 8HP |
| Machine | Size(L*W*H) | 1900*1280*1930mm | 1900*1860*1930mm | 4100*1400*1800mm | 4100*2200*1800mm |
| Weight | 2000kg | 3200kg | 3600kg | 5800kg | |
| Preform unscrambler | Size(L*W*H) | 2000*950*2480mm | 2000*950*2480mm | 2000*950*2480mm | 2000*950*2480mm |
| Weight | 250kg | 250kg | 250kg | 500kg |
More requirements ,please feel free to contact us.
PET bottle blow molding machine application

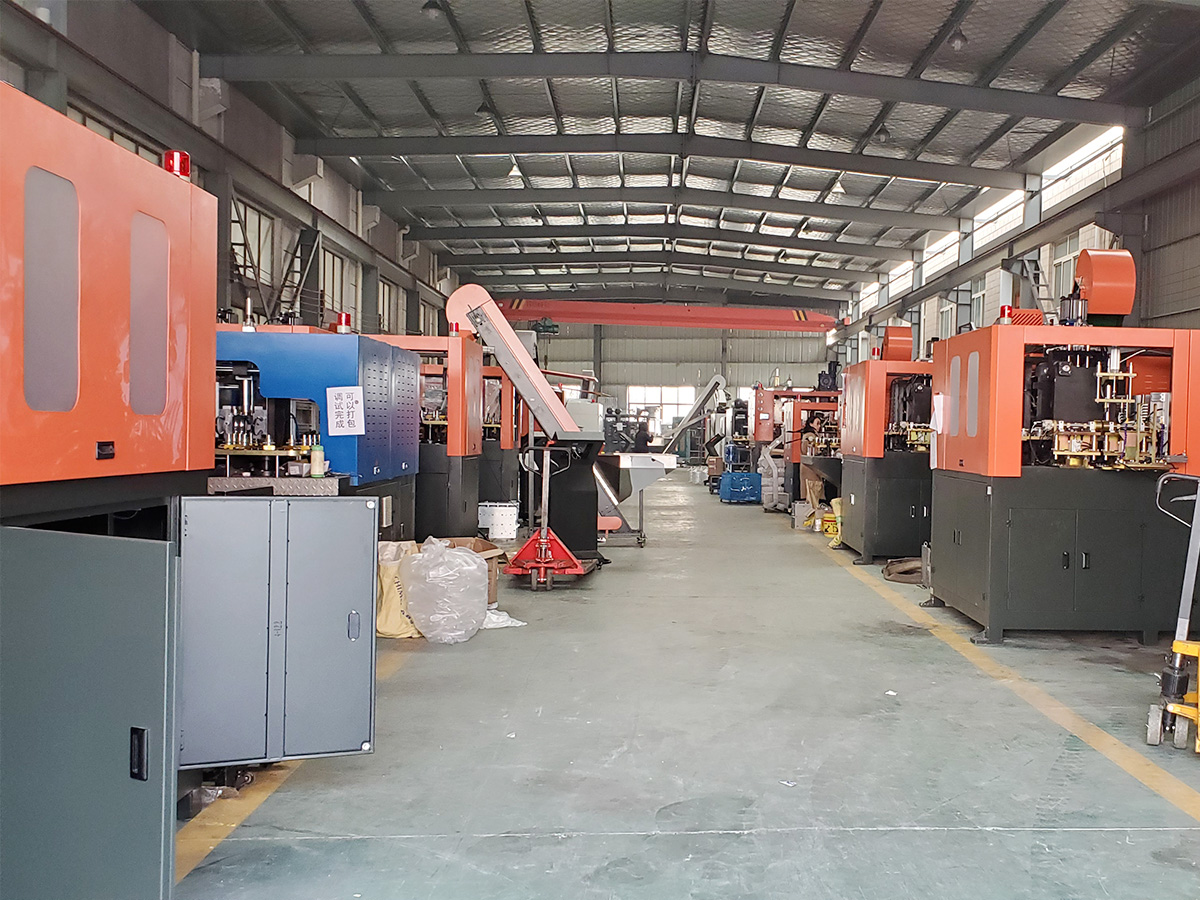

PET blow molding machine factory

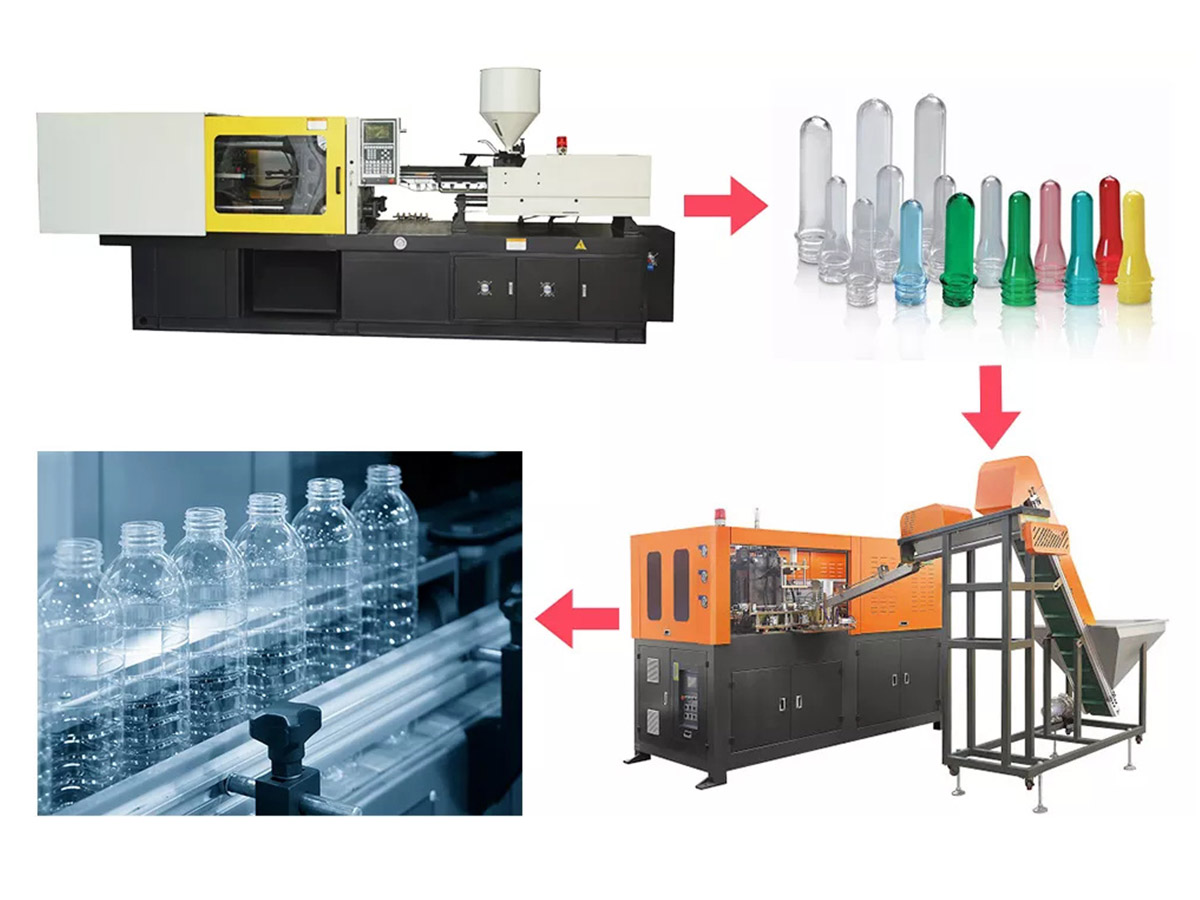

Supply the whole production line
