MEPER
MP80D
PP PE PVC PA......
10L
1,2,3,4 Set
4x2.3x2.5m
8.2Ton
| Quantity: | |
|---|---|
MEPER MP80D agro chemical pesticide bottle 2 layer 3 layers multilayers coex extrusion blow molding machine

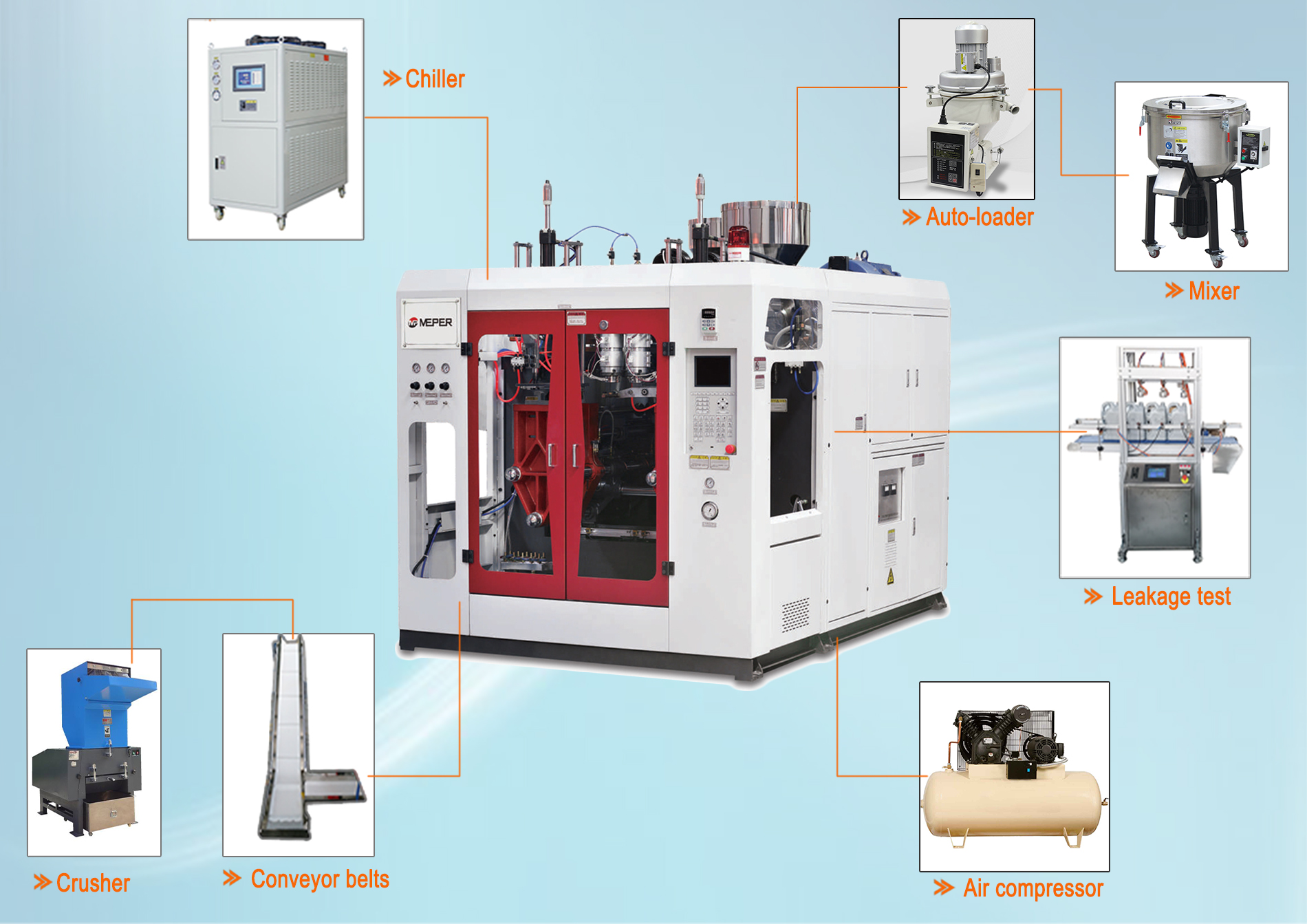

D series machine is standard type machine with double station tie bar structure, The clamping structure is three or four tie bars direct locking structure with automatic lubrication system. The structure is simple and stable and it is convenient for plastics waste collection.
MP80D extrusion blow molding machine is specifically designed for making bottles from 10ml up to maximum 10L. It is hydraulic driven with accrate eletrical control system. MP80D has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP80D is updated to be one of the most reliable and popular model in the world.
 | Extrusion Die Head: Highly Experienced Multi-cavity and Multi-layer Technology |
| Adopting with latest die head design, MEPER focuses on providing high quality and high precision self-manufactured extrusion die heads for customers. |
 | Control System: Highly Optimized User-friendly Control Technology |
| All Meper Machines is Equipped in Standard with Easy Operational Techmation Control System or Optional with B&r Control System. Moog Parison Control is Also Optional Based on Different Requirements. |
 | Clamping System: Highly Developed Tie Barless Design |
| MP-D Tie-bar series employs direct-acting clamping system transferring the forces directly to the middle of the back platen and converting the same force to the front by tie bars and alignment rod. This tie-bar design offers quick mould change and convenient scrap collection. |
| Energy Saving: High Standard of Energy Saving System |
| MP55D is equipped with high standard of energy saving driving systems. All extrusion and hyraulic motors are in IE3/4 energy level. Also, servo energy saving feature can be easily applied. |
| MACHINE MODEL | MP80D | |
| SPECIFICATIONS | Material | PE PP PVC PA... |
| Max container capacity | 10L | |
| Number of die | 1,2,3,4,6 | |
| Machine Dimension(LxWxH) | 4x2.3x2.5m | |
| Total weight | 8.2ton | |
| CLAMPING UNIT | Clamping force | 150kN |
| Platen openning stokes | 220-620mm | |
| Carriage stroke | 540mm | |
| Max mould size(WxH) | 520x460mm | |
| EXTRUSION UNIT | Screw diameter | 80mm |
| Screw L/D ratio | 24 L/D | |
| (HDPE) Plasticizing capacity | 108kg/h | |
| Screw heating zone | 4 zone | |
| Screw heating power | 15.6kw | |
| Screw fan power | 0.14kw | |
| Extrusion motor power | 30kw | |
| DIE HEAD | Die head heating zone | 3 zone |
| Power of die heating | 13.5kw | |
| ENERGY CONSUMPTION | Total power of machine | 74.98kw |
| Power of oil pump motor | 11kw | |
| Air pressure | 0.6-0.8 Mpa | |
| Average energy consumption | 35kw | |
| Consumption compression air | 1.5m3/min | |
| Consumption cooling water | 40L/min |
