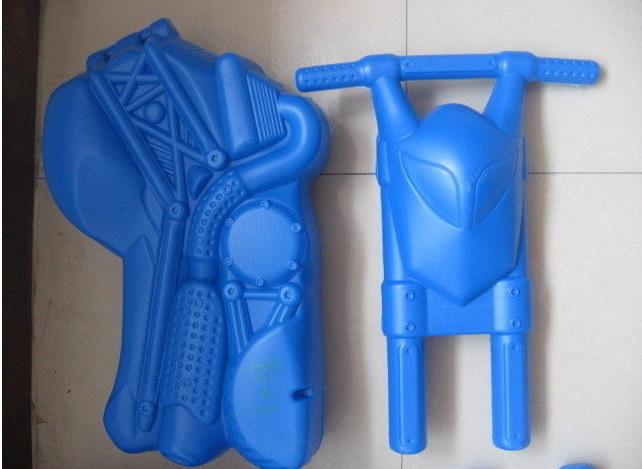

China Meper Child Play Motor Bike HDPE Double Station Blow Molding Machine for Baby Children Toy
| MP80FD is specifically designed for making bottles from 1L bottle. It is hydraulic driven with accrate eletrical control system. MP80FD has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP80FD is updated to be one of the most reliable and popular model in the world. |
| l.High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special impact resistance release valve structure or customize high-speed proportional directional valve. |
| 2.Specially designed screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no fusing line die head, single die head to eight die head are optional, and meet customers' top-quality requirement. |
| 3. Multi-screws & multi-die head can be adopted to improve the quality of the product and lower down the cost of material. |
| 4. Famous brand large torque vector inverter; complied with special extrusion hardened reducer; can operate in stable, low noise, and durable. |
 | Extrusion Die Head: Highly Experienced Multi-cavity and Multi-layer Technology |
| Adopting with latest die head design, MEPER focuses on providing high quality and high precision self-manufactured extrusion die heads for customers. |
 | Control System: Highly Optimized User-friendly Control Technology |
| All Meper Machines is Equipped in Standard with Easy Operational Techmation Control System or Optional with B&r Control System. Moog Parison Control is Also Optional Based on Different Requirements. |
 | Clamping System: Highly Developed Tie Barless Design |
| MP-D Tie-bar series employs direct-acting clamping system transferring the forces directly to the middle of the back platen and converting the same force to the front by tie bars and alignment rod. This tie-bar design offers quick mould change and convenient scrap collection. |
| Energy Saving: High Standard of Energy Saving System |
| MP55D is equipped with high standard of energy saving driving systems. All extrusion and hyraulic motors are in IE3/4 energy level. Also, servo energy saving feature can be easily applied. |
| MACHINE MODEL | MP80FD | |
| SPECIFICATIONS | Material | PE PP PVC PA... |
| Max container capacity | 10L | |
| Number of die | 1,2,3,4,6 | |
| Machine Dimension(LxWxH) | 3.3x5.5x2.8m | |
| Total weight | 12 ton | |
| CLAMPING UNIT | Clamping force | 150kN |
| Platen openning stokes | 240-620mm | |
| Carriage stroke | 600mm | |
| Max mould size(WxH) | 550x430mm | |
| EXTRUSION UNIT | Screw diameter | 80mm |
| Screw L/D ratio | 24 L/D | |
| (HDPE) Plasticizing capacity | 108kg/h | |
| Screw heating zone | 4 zone | |
| Screw heating power | 15.6kw | |
| Screw fan power | 0.14kw | |
| Extrusion motor power | 30kw | |
| DIE HEAD | Die head heating zone | 8 zone |
| Power of die heating | 10.3kw | |
| ENERGY CONSUMPTION | Total power of machine | 92kw |
| Power of oil pump motor | 31kw | |
| Air pressure | 0.6-0.8 Mpa | |
| Average energy consumption | 61kw | |
| Consumption compression air | 1.2m3/min | |
| Consumption cooling water | 80L/min |
