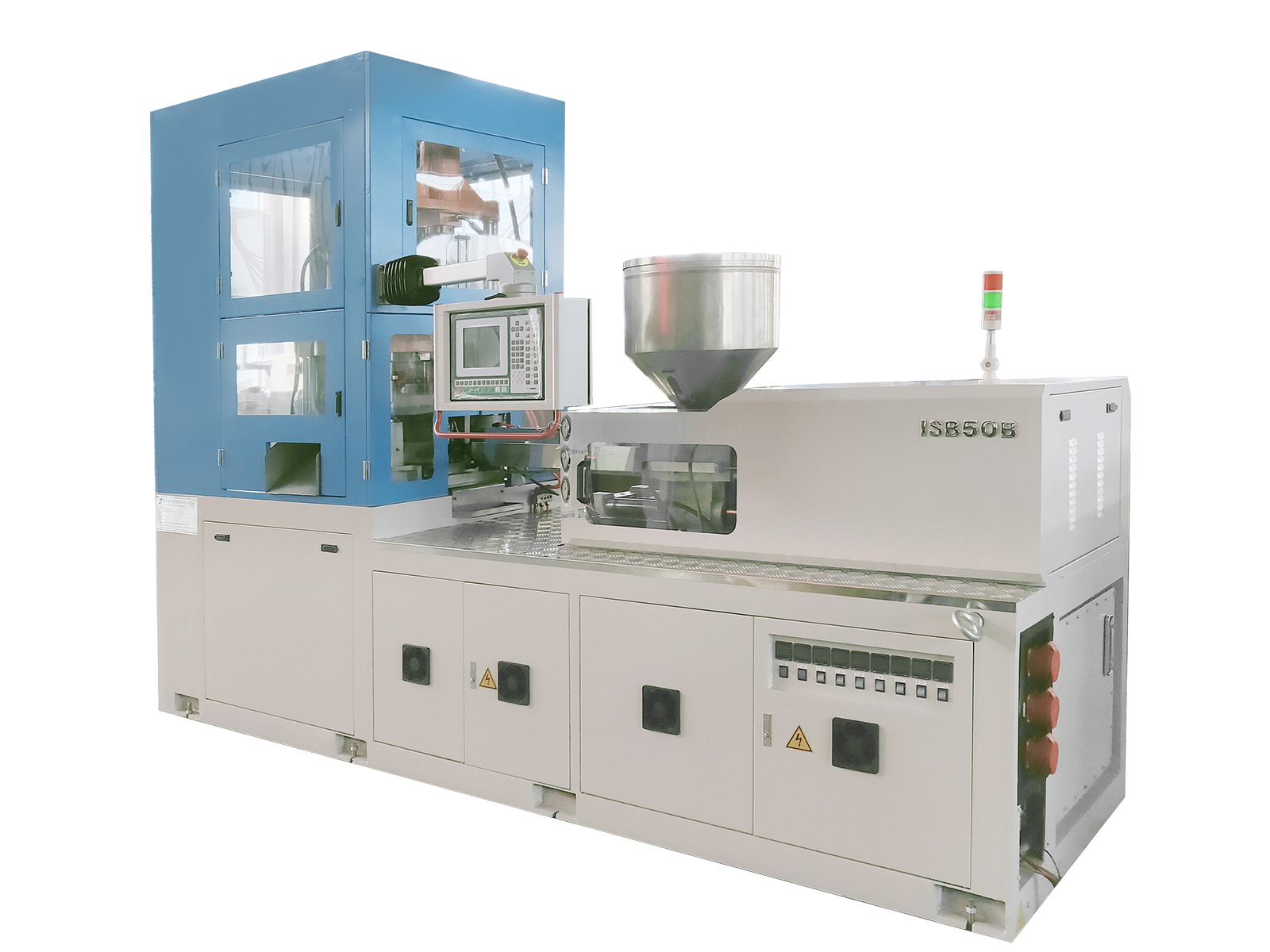

Fully-automatic pet stretch-blow molding machines(preheat). It has 3 to 16 cavities and the maximum capacity of the products is 2000mL. It can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.
1).High Automatization
2).High Intelligence:The machine can be controlled through touch screen and running status is shown on it.
3).High Quanlity:Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4).High Speed:6000BPH(6-cavity), 8000BPH(8-cavity), 12000BPH(12-cavity), 16000BPH(16-cavity).
5).No Contamination:Closed production zone, good self-lubrication system avoid contamination.
6).Low Cost:Low consumption of electricity, air and water.
7).High Transparency:Easy maintenance, absolute safely, visual inspection, low noise.

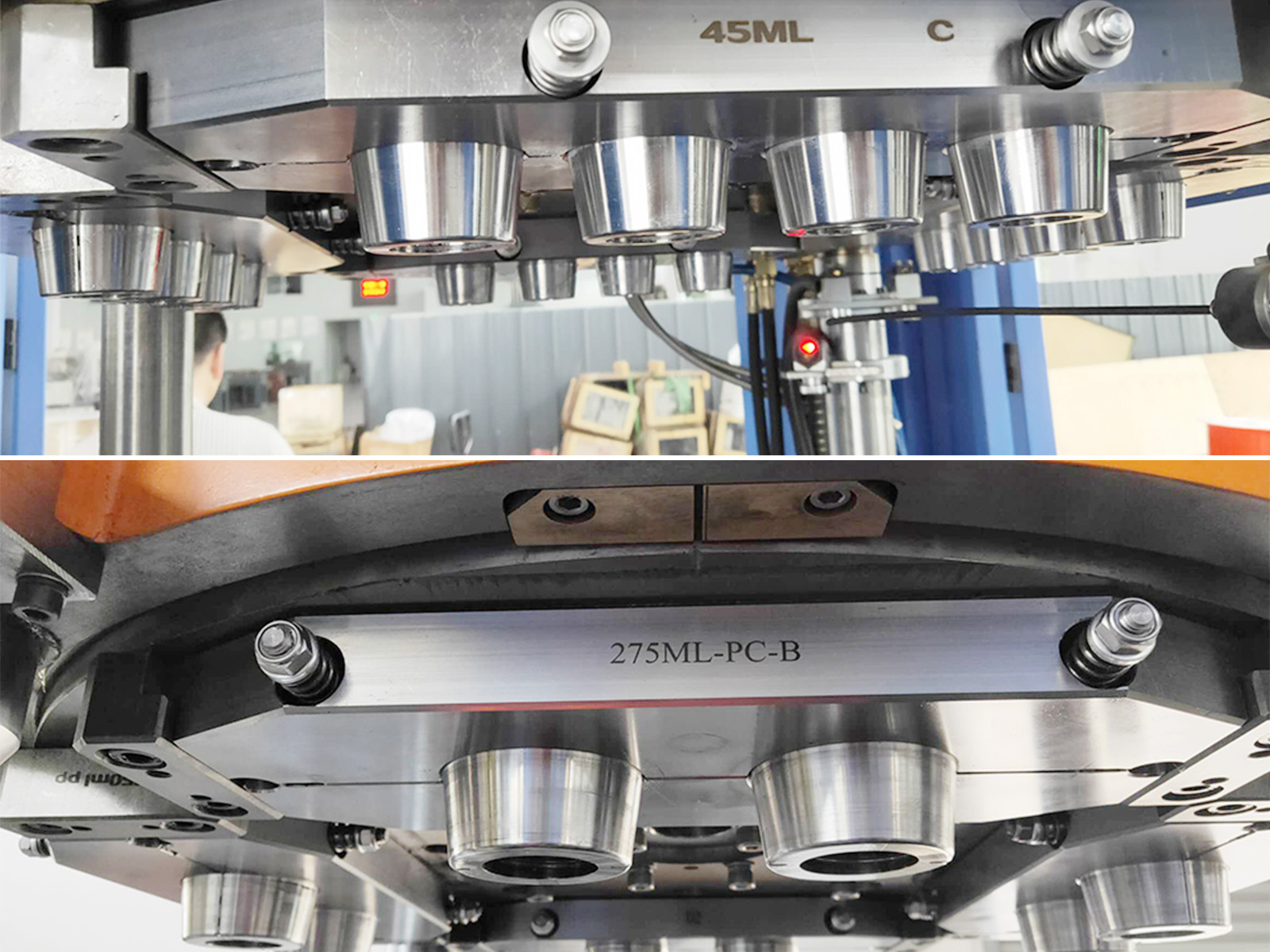

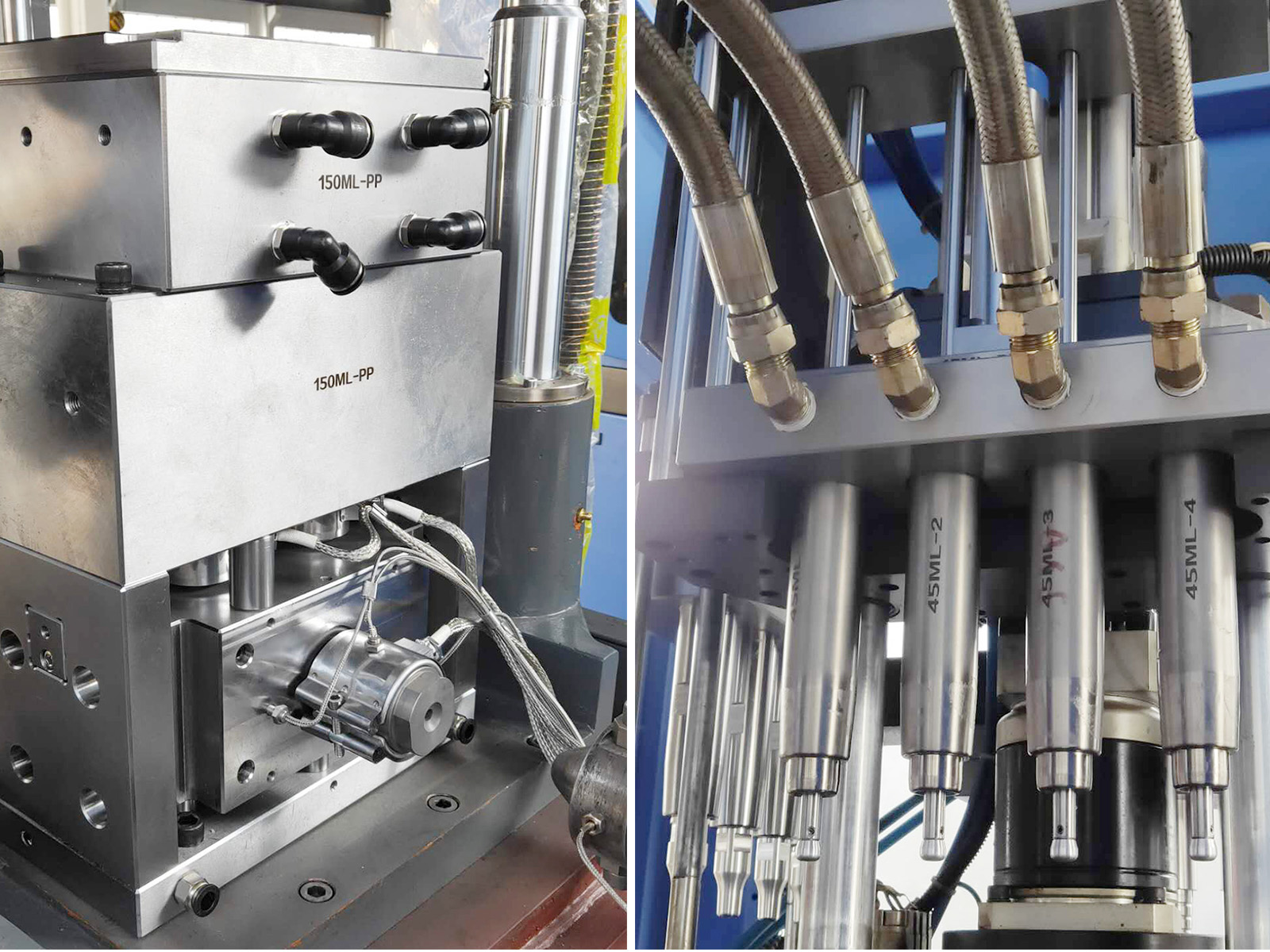

Machine Detail
Machine Application
Technical data
Item | IBM250/450 | IBM300/700 | IBM500/1350 |
Screw Diameter | 45mm | 55mm | 70mm |
Injection Capacity(max.) | 250cm3 | 300cm3 | 500cm3 |
Injection Clamping Force | 460KN | 700KN | 1250KN |
Blowing Clamping Force | 75KN | 110KN | 200KN |
Total Power | 40KW | 56KW | 95KW |
Operating Power | 52-70% | 52-70% | 52-70% |
Hydraulic Working Pressure | 14.5Mpa | 14.5Mpa | 14.5Mpa |
Compressed Air Pressure | 0.7-0.9Mpa | 0.7-0.9Mpa | 0.7-0.9Mpa |
Cooling Water Pressure | 0.3-0.4Mpa | 0.3-0.4Mpa | 0.3-0.4Mpa |
Product Diameter(max.) | 100mm | 100mm | 100mm |
Product Length(max.) | 200mm | 200mm | 200mm |
Overall Dimension | 420*176*194cm | 480*205*200cm | 580*250*210cm |
Weight(Approx.) | 5T | 8.5T | 13T |
Package
1. The machine body is covered by waterproof film firstly, and then fixed on exported wooden pallets with bolts and wires.
2. The electric controlling parts and spare parts are loaded separately in wooden box.
3. The auxiliary equipments are packaged in wooden box as well.
4. All wooden material is fumigation certificated and safe for exporting to all over the world.
After service
1. We offer you the free machine operation training happened in China.
2. Offering the free testing and installing of the machine in the buyer factory, but the fee of the visa, the ticket, food and living should be in the buyer’s charge.
3. The spare parts of the machine and the auxiliary machine can be supply by us.
4. The guarantee of the machine is one year under the normal operation.
