MEPER
MP80FD
PP PE PVC PA......
10L
1,2,3,4 Set
3.3x5.5x2.8m
12Ton
| Quantity: | |
|---|---|
| FD SERIES FEATURES |
| l.High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special impact resistance release valve structure or customize high-speed proportional directional valve. |
| 2.Specially designed screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no fusing line die head, single die head to eight die head are optional, and meet customers' top-quality requirement. |
| 3. Multi-screws & multi-die head can be adopted to improve the quality of the product and lower down the cost of material. |
| 4. Famous brand large torque vector inverter; complied with special extrusion hardened reducer; can operate in stable, low noise, and durable. |
 | Extrusion Die Head: Highly Experienced Multi-cavity and Multi-layer Technology |
| Adopting with latest die head design, MEPER focuses on providing high quality and high precision self-manufactured extrusion die heads for customers. |
 | Control System: Highly Optimized User-friendly Control Technology |
| All Meper Machines is Equipped in Standard with Easy Operational Techmation Control System or Optional with B&r Control System. Moog Parison Control is Also Optional Based on Different Requirements. |
 | Clamping System: Highly Developed Tie Barless Design |
| MP-D Tie-bar series employs direct-acting clamping system transferring the forces directly to the middle of the back platen and converting the same force to the front by tie bars and alignment rod. This tie-bar design offers quick mould change and convenient scrap collection. |
| Energy Saving: High Standard of Energy Saving System |
| MP55D is equipped with high standard of energy saving driving systems. All extrusion and hyraulic motors are in IE3/4 energy level. Also, servo energy saving feature can be easily applied. |
| MACHINE MODEL | MP80FD | |
| SPECIFICATIONS | Material | PE PP PVC PA... |

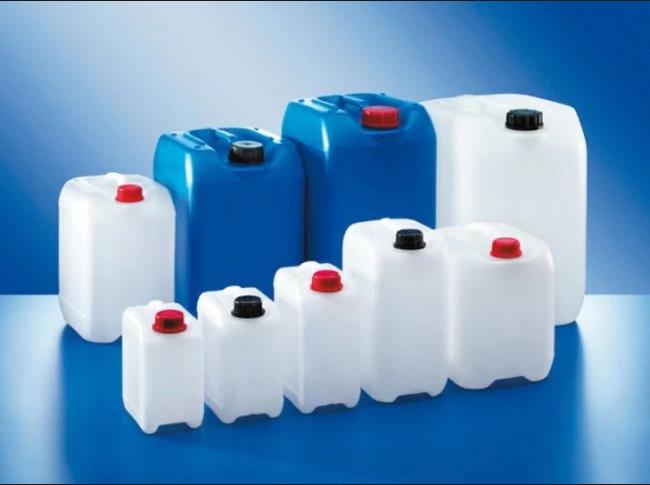

| Max container capacity | 10L | |
| Number of die | 1,2,3,4,6 | |
| Machine Dimension(LxWxH) | 3.3x5.5x2.8m | |
| Total weight | 12 ton | |
| CLAMPING UNIT | Clamping force | 150kN |
| Platen openning stokes | 240-620mm | |
| Carriage stroke | 600mm | |
| Max mould size(WxH) | 550x430mm | |
| EXTRUSION UNIT | Screw diameter | 80mm |
| Screw L/D ratio | 24 L/D | |
| (HDPE) Plasticizing capacity | 108kg/h | |
| Screw heating zone | 4 zone | |
| Screw heating power | 15.6kw | |
| Screw fan power | 0.14kw | |
| Extrusion motor power | 30kw | |
| DIE HEAD | Die head heating zone | 8 zone |
| Power of die heating | 10.3kw | |
| ENERGY CONSUMPTION | Total power of machine | 92kw |
| Power of oil pump motor | 31kw | |
| Air pressure | 0.6-0.8 Mpa | |
| Average energy consumption | 61kw | |
| Consumption compression air | 1.2m3/min | |
| Consumption cooling water | 80L/min |
